2BK45x1, V-Belt Pulley

Product Details for 2BK45x1

Comparable to: 2BK45 1., 2BK45-1 PULLEY, 20179843, 121772, 2BK451, 2BK45-1, 84431352, 2MB43x1

Click to Enlarge

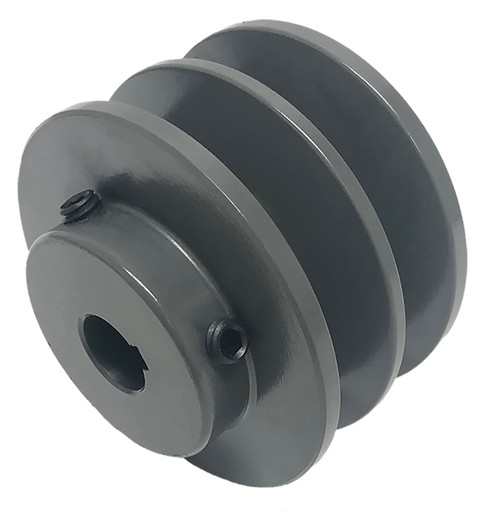

2BK45x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2BK45x1 in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 2BK45x1
Type 2
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1 inch Finished Bore
Outside Diameter (in) 4.250
Face Width (in) 1.750
Overall Length (in) 2.219
Hub Diameter (in) 2.125
Min. Bore (in) 1.000
MOQ 1
Pitch Dia. "A" 3.500
Pitch Dia. "B" 3.900
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 4.00
Part Number Cross Reference 2BK45 1., 2BK45-1 PULLEY, 20179843, 121772, 2BK451, 2BK45-1, 84431352, 2MB43x1
Grooves 2
Set Screw Quantity 1
