2BK47H, V-Belt Pulley

2BK47H, 2BK47-QT, 20179553, 2MBL44

Product Details for 2BK47H

Comparable to: 2BK47H, 2BK47-QT, 20179553, 2BK47, 00754598, 2MBL45, 2BK47QT

Click to Enlarge

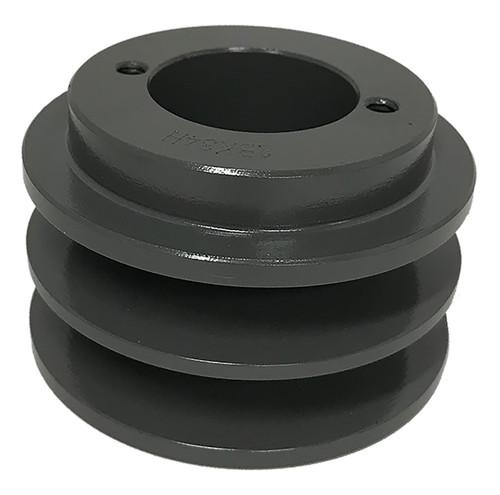

2BK47H, V-Belt Pulley, Cast Iron

Learn more about 2BK47H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 2BK47H
Type 2
Material Cast Iron
Bore Type QD
Bore (in) H
Outside Diameter (in) 4.450
Face Width (in) 1.750
Overall Length (in) 1.750
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 3.700
Pitch Dia. "B" 4.100
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 2.80
Part Number Cross Reference 2BK47H, 2BK47-QT, 20179553, 2BK47, 00754598, 2MBL45, 2BK47QT
Grooves 2
