2BK50x1, V-Belt Pulley

2BK50x1

2BK50x1

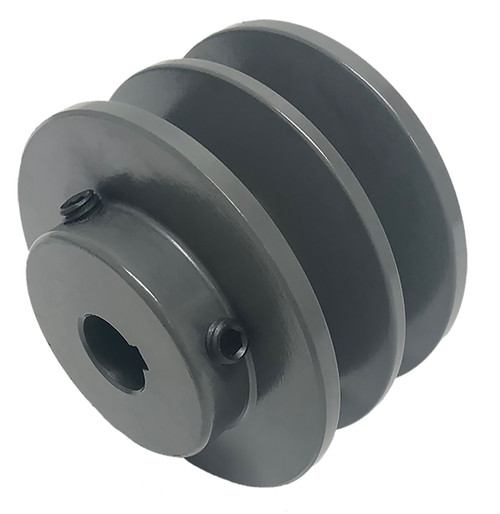

2BK50x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2BK50x1 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 2BK50x1
Type 2
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1.000
Bore Description 1 inch Finished Bore
Outside Diameter (in) 4.750
Face Width (in) 1.750
Overall Length (in) 2.219
Hub Diameter (in) 2.125
Min. Bore (in) 0.75
Unit System Inch
MOQ 1
Pitch Dia. "A" 4.000
Pitch Dia. "B" 4.400
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 4.80
Part Number Cross Reference 2BK50 1, 2BK50x1, 2BK50-1 PULLEY, 20179850, 2BK50 X 1 SHEAVE, 2BK501, 2MB48X1, 2BK50x1, 2MB48X1, 2BK50x1
Grooves 2
Set Screw Quantity 1

Related Products

Comparable to: 2BK50 1, 2BK50x1, 2BK50-1 PULLEY, 20179850, 2BK50 X 1 SHEAVE, 2BK501, 2MB48X1, 2BK50x1, 2MB48X1, 2BK50x1
