2BK52H, V-Belt Pulley

2BK52H

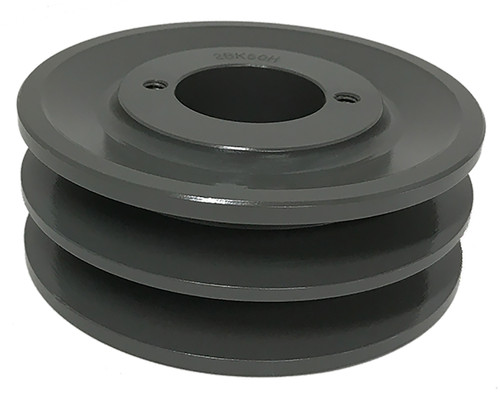

2BK52H, V-Belt Pulley, Cast Iron

Learn more about 2BK52H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	2BK52H
Type	2
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for H Bushing
Outside Diameter (in)	4.950
Face Width (in)	1.750
Overall Length (in)	1.750
Min. Bore (in)	0.375
Unit System	Inch
Bushing	H
MOQ	1
Pitch Dia. "A"	4.200
Pitch Dia. "B"	4.600
Sheave Type	BK
For Belt Type	4L, 5L, A, or B
Weight (lb)	3.60
Part Number Cross Reference	2BK52QT, 2BK52H, 2BK52-QT, 20179555, 2BK52H SHEAVE, 2BK52, 2MBL49, 2BK52H, 2MBL49, 2BK52H
Grooves	2
