2BK52x1, V-Belt Pulley

Product Details for 2BK52x1

Comparable to: 2BK52 1., 2BK52-1 PULLEY, 20179854, 121787, 2BK521, 2BK52-1, 2MB50x1

Click to Enlarge

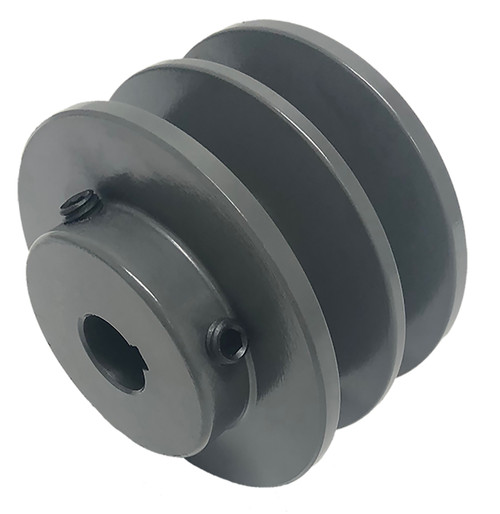

2BK52x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2BK52x1 in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 2BK52x1
Type 2
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1 inch Finished Bore
Outside Diameter (in) 4.950
Face Width (in) 1.750
Overall Length (in) 2.219
Hub Diameter (in) 2.125
Min. Bore (in) 0.875
MOQ 1
Pitch Dia. "A" 4.200
Pitch Dia. "B" 4.600
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 5.20
Part Number Cross Reference 2BK52 1., 2BK52-1 PULLEY, 20179854, 121787, 2BK521, 2BK52-1, 2MB50x1
Grooves 2
Set Screw Quantity 1
