2BK55H, V-Belt Pulley

2BK55H, 2BK55-QT, 20179556, 2MBL52

Product Details for 2BK55H

Comparable to: 2BK55H, 2BK55-QT, 20179556, 2BK55, 00754622, 2MBL53, 2BK55QT

Click to Enlarge

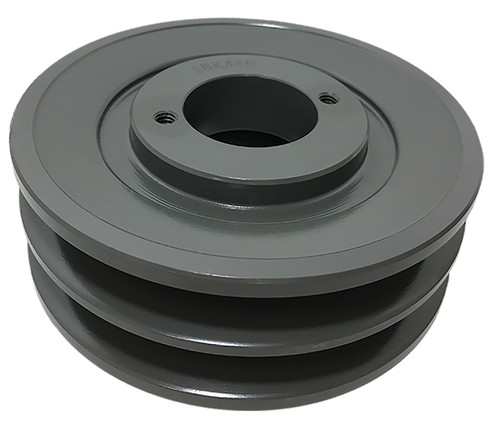

2BK55H, V-Belt Pulley, Cast Iron

Learn more about 2BK55H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 2BK55H
Type 2
Material Cast Iron
Bore Type QD
Bore (in) H
Outside Diameter (in) 5.250
Face Width (in) 1.750
Overall Length (in) 1.750
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 4.500
Pitch Dia. "B" 4.900
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 3.90
Part Number Cross Reference 2BK55H, 2BK55-QT, 20179556, 2BK55, 00754622, 2MBL53, 2BK55QT
Grooves 2
