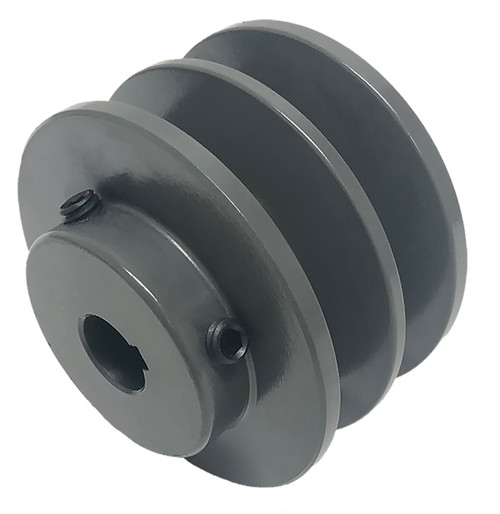

2BK62x1, V-Belt Pulley

2BK62x1

2BK62x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2BK62x1 to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	2BK62x1
Type	3
Material	Cast Iron
Bore Type	Finished Bore
Bore (in)	1.000
Bore Description	1 inch Finished Bore
Outside Diameter (in)	5.950
Face Width (in)	1.750
Overall Length (in)	2.219
Hub Diameter (in)	2.125
Min. Bore (in)	1
Unit System	Inch
MOQ	1
Pitch Dia. "A"	5.200
Pitch Dia. "B"	5.600
Sheave Type	BK
For Belt Type	4L, 5L, A, or B
Weight (lb)	6.00
Part Number Cross Reference	2BK62 1, 2BK62x1, 2BK62-1 PULLEY, 20179870, 2BK62 X 1 SHEAVE, 2BK621, 2MB60X1, 2BK62x1, 2MB60X1, 2BK62x1
Grooves	2
Set Screw Quantity	1
