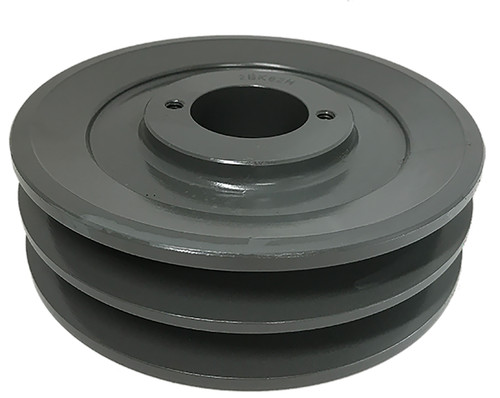

2BK67H, V-Belt Pulley

2BK67H, 2BK67-QT, 20179561, 2MBL64

2BK67H

2BK67H, V-Belt Pulley, Cast Iron

Learn more about 2BK67H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 2BK67H
Type 3
Material Cast Iron
Bore Type QD
Bore Description Bored for H Bushing
Outside Diameter (in) 6.450
Face Width (in) 1.750
Overall Length (in) 1.750
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 5.700
Pitch Dia. "B" 6.100
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 5.00
Part Number Cross Reference 2BK67QT, 2BK67H, 2BK67-QT, 20179561, 2BK67H SHEAVE, 2BK67, 2MBL64, 2BK67H, 2MBL64, 2BK67H
Grooves 2

Related Products

Comparable to: 2BK67QT, 2BK67H, 2BK67-QT, 20179561, 2BK67H SHEAVE, 2BK67, 2MBL64, 2BK67H, 2MBL64, 2BK67H

Documentation

Download Catalog
For custom parts click here
REACH Certification
RoHS Certification
