2C120SF, V-Belt Pulley

2C120SF, QD2C12

2C120SF

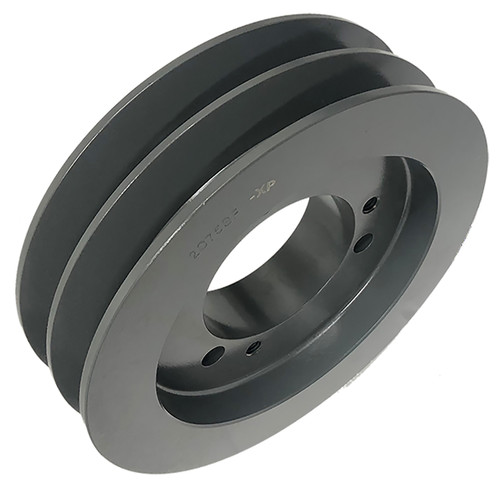

2C120SF, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2C120SF to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 2C120SF
Type D-3
Material Cast Iron
Bore Type QD
Bore (in) Bored for SF Bushing
Outside Diameter (in) 12.400
Face Width (in) 2.250
Min. Bore (in) 0.500
Unit System Inch
Bushing SF
L (in) 2.0625
MOQ 1
Weight (lb) 24.20
Part Number Cross Reference QD2C12.0, 2C120.SF, 12.0-2C-SF PULLEY, 20178956, 2C12.0, 2/C1200SF, 2C120SF
Grooves 2

Related Products

Comparable to: QD2C12.0, 2C120.SF, 12.0-2C-SF PULLEY, 20178956, 2C12.0, 2/C1200SF, 2C120SF
