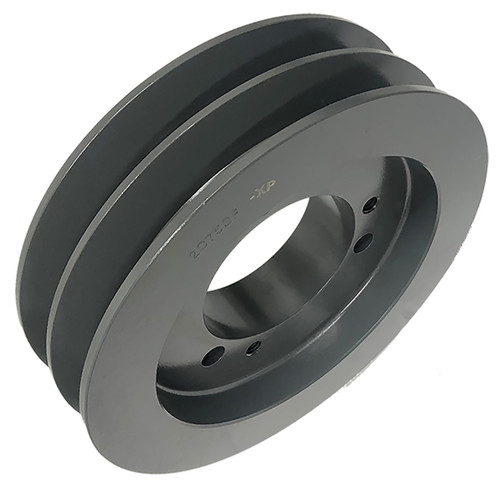

2C150SF, V-Belt Pulley

2C150SF, QD2C15

2C150SF

2C150SF, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2C150SF to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	2C150SF
Type	D-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SF Bushing
Outside Diameter (in)	15.400
Face Width (in)	2.250
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SF
L (in)	2.0625
MOQ	1
Sheave Type	C
Weight (lb)	32.00
Part Number Cross Reference	QD2C15.0, 2C150SF, 15.0-2C-SF, 2C150SF, 2C150SF
Grooves	2

Related Products

Comparable to: QD2C15.0, 2C150SF, 15.0-2C-SF, 2C150SF, 2C150SF
