30-14M85-6FS13, Timing Pulley

30-14M85-6FS13

Click to Enlarge

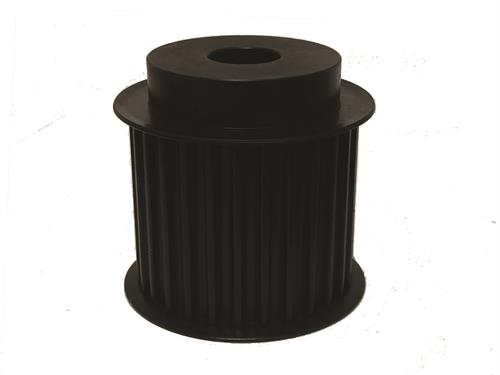

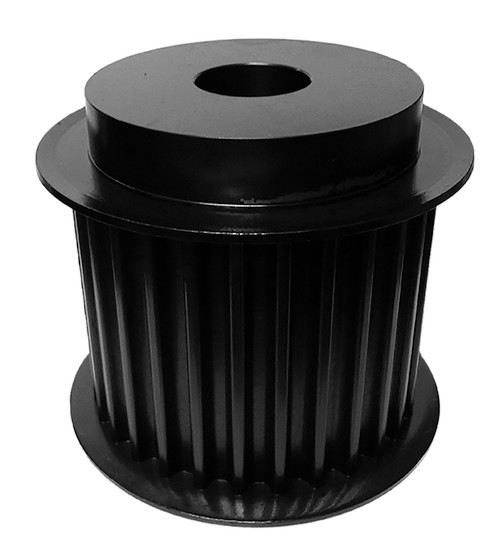

30-14M85-6FS13, Timing Pulley, Steel, Black Oxide,

Learn more about 30-14M85-6FS13 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	30-14M85-6FS13
Teeth	30
Tooth Style	HTD14mm
For Belt Width (mm)	85.00
Type	6F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	1.250
Bore Description	1-1/4 Inch Minimum Plain Bore
Pitch Diameter (in)	5.263
Outside Diameter (in)	5.153
Flange Diameter (in)	5.763
Face Width (in)	4.000
Overall Length (in)	5.000
Hub Diameter (in)	3.690
Min. Bore (in)	1.25
Unit System	Inch
P.D. (mm)	134.00
O.D. (mm)	130.90
MOQ	1
Weight (lb)	19.40
Part Number Cross Reference	30-14M85-6FS13, 30-14M85-6FS13
