30-14MX20-IDLER Idlers

30-14MX20-IDLER, 20-IDL-SPRK

Product Details for 30-14MX20-IDLER

Comparable to: 30-14MX20-IDLER, 20-IDL-SPRK

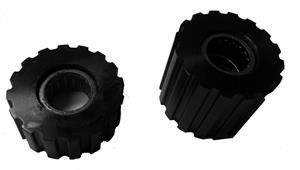

30-14MX20-IDLER, Idler Pulley, Powerhouse MX, Idler, Cast Iron

Specifications

Product Number 30-14MX20-IDLER
Teeth 30
Tooth Style GT2 14mm
For Belt Width (mm) 20.000
Material Cast Iron
Finish Black Oxide
Bore Type Idler
Pitch Diameter (in) 5.263
Outside Diameter (in) 5.153
Flange Diameter (in) 5.760
Unit System Inch
Weight (lb) 12.55
List Price (1-9 Qty.) (USD) 369.43
Discount Price (10-24 Qty.) (USD) 335.84
Discount Price (25-49 Qty.) (USD) 305.31
Part Number Cross Reference 30-14MX20-IDLER, 20-IDL-SPRK

Documentation

Download Catalog 2015_BBMAN_CATALOG_367.pdf
For custom parts click here custom.html
REACH Certification 30-14MX20-IDLER_REACH_cert
RoHS Certification 30-14MX20-IDLER_RoHS_cert
