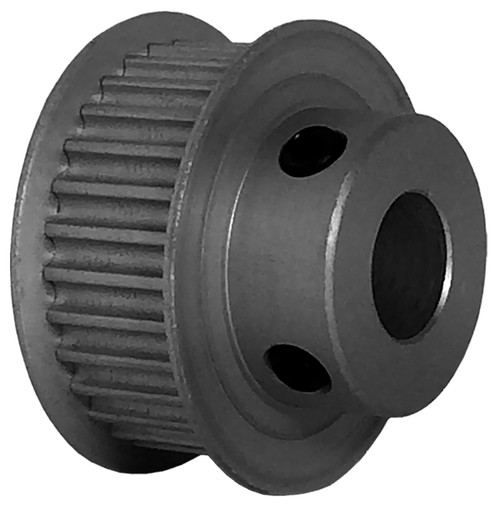

30-3P09-6FA5, Timing Pulley

30-3P09-6FA5

Click to Enlarge

30-3P09-6FA5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 30-3P09-6FA5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	30-3P09-6FA5
Teeth	30
Tooth Style	3P
For Belt Width (mm)	9.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.375
Bore Description	3/8 Inch Finished Bore
Pitch Diameter (in)	1.128
Outside Diameter (in)	1.098
Flange Diameter (in)	1.250
Face Width (in)	0.506
Overall Length (in)	0.812
Hub Diameter (in)	0.776
Min. Bore (in)	0.375
Unit System	Inch
P.D. (mm)	29.00
O.D. (mm)	27.90
MOQ	1
Weight (lb)	0.05
Part Number Cross Reference	30-3P09-6FA5, 30-3P09-6FA5
Set Screw Quantity	2
