30-5M09M6FA8, Timing Pulley

30-5M09M6FA8

Click to Enlarge

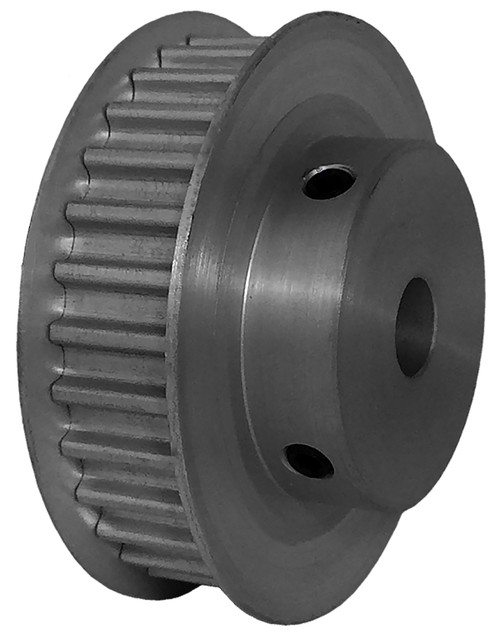

30-5M09M6FA8, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 30-5M09M6FA8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	30-5M09M6FA8
Teeth	30
Tooth Style	HTD5mm
For Belt Width (mm)	9.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore Description	8 mm Finished Bore
Bore (mm)	8.00
Pitch Diameter (in)	1.880
Outside Diameter (in)	1.835
Pulley Belt Width (mm)	10.60
Unit System	Metric
P.D. (mm)	48.00
O.D. (mm)	46.60
Flange Diameter (mm)	50.80
Face Width (mm)	13.90
Overall Length (mm)	21.80
Hub Diameter (mm)	30.20
MOQ	1
Weight (lb)	0.17
Part Number Cross Reference	A 6A25M030DF0908, A6A25M030DF0908, TP5A8W9M-30, 30-5M09M6FA8, 30-5M09M6FA8
Set Screw Quantity	2
