30-5P09-6FA3, Timing Pulley

30-5P09-6FA3 - Aluminum Powerhouse® Pulleys

Product Details for 30-5P09-6FA3

Comparable to: 30-5P09-6FA3, A 6A55-030DF0916, A6A55-030DF0916, P30-5MGT-09AL, 78450930

Click to Enlarge

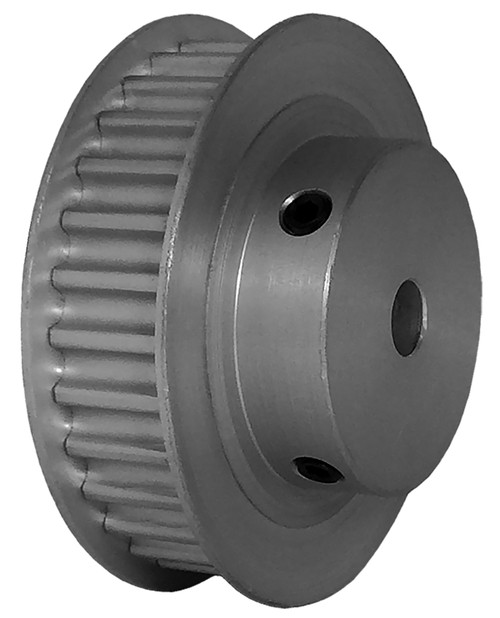

30-5P09-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 30-5P09-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30-5P09-6FA3
Teeth 30
Tooth Style GT 5mm
For Belt Width (mm) 9.000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.880
Outside Diameter (in) 1.835
Flange Diameter (in) 2.000
Face Width (in) 0.546
Overall Length (in) 0.859
Hub Diameter (in) 1.188
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.250
Unit System Inch
Max. Bore (in) 0.938
Weight (lb) 0.16
Part Number Cross Reference 30-5P09-6FA3, A 6A55-030DF0916, A6A55-030DF0916, P30-5MGT-09AL, 78450930
