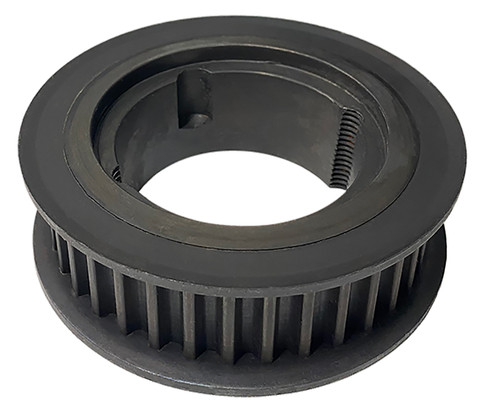

30-8MX21-1108, Timing Pulley

30-8MX21-1108

Click to Enlarge

30-8MX21-1108, Timing Pulley, Steel, Black Oxide,

Learn more about 30-8MX21-1108 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	30-8MX21-1108
Teeth	30
Tooth Style	8MX
For Belt Width (mm)	21.00
Type	A1F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 1108 Bushing
Pitch Diameter (in)	3.008
Outside Diameter (in)	2.945
Flange Diameter (in)	3.346
Face Width (in)	1.203
Overall Length (in)	1.203
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.960
Unit System	Inch
Bushing	1108
P.D. (mm)	76.00
O.D. (mm)	74.80
MOQ	1
Weight (lb)	1.44
Part Number Cross Reference	8MX-30S-21, B8MCS-30-21, 30G-8M-21-1108, 20839707, 8MX-30S-21-1108 HT500 SPKT, 8MPC30S21, 30-8MX21-1108, 481921, 30-8MX21-1108
