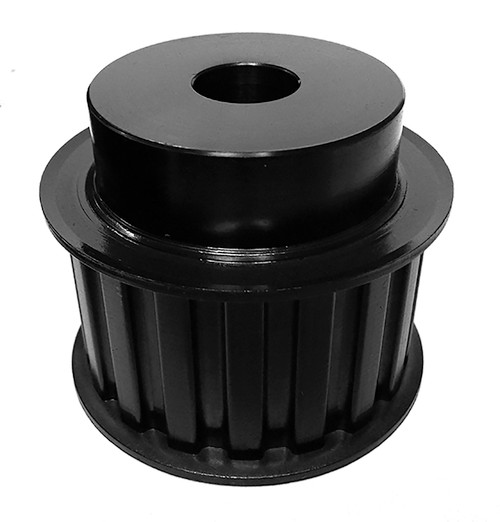

30H150-6FS8, Timing Pulley

30H150-6FS8

Click to Enlarge

30H150-6FS8, Timing Pulley, Steel, Black Oxide,

Learn more about 30H150-6FS8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	30H150-6FS8
Teeth	30
Tooth Style	H
For Belt Width (in)	1.5000
Type	6F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.750
Bore Description	3/4 Inch Minimum Plain Bore
Pitch Diameter (in)	4.775
Outside Diameter (in)	4.721
Flange Diameter (in)	5.005
Face Width (in)	1.812
Overall Length (in)	2.875
Hub Diameter (in)	3.625
Min. Bore (in)	0.75
Pulley Belt Width (in)	1.562
Unit System	Inch
P.D. (mm)	121.00
O.D. (mm)	119.90
MOQ	1
Weight (lb)	10.56
Part Number Cross Reference	30H150, 30HB150, 30H150 X 3/4 MPB, 30H150MPB, P30H150, 35376722, P30H150-PB, 30H150-6FS8, 114456, 30H150-6FS8
