30H200-6FS10, Timing Pulley

30H200-6FS10

Click to Enlarge

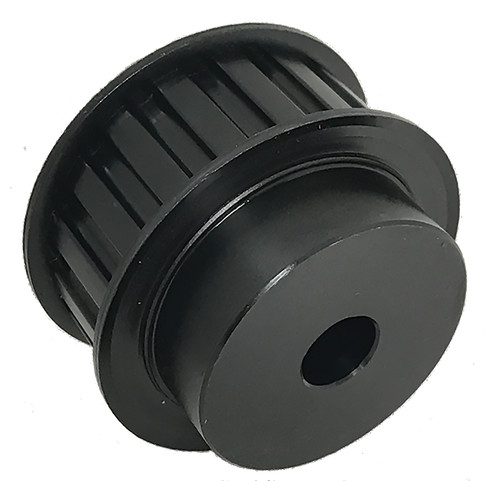

30H200-6FS10, Timing Pulley, Steel, Black Oxide,

Learn more about 30H200-6FS10 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	30H200-6FS10
Teeth	30
Tooth Style	H
For Belt Width (in)	2.0000
Type	6F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	1.000
Bore Description	1 Inch Minimum Plain Bore
Pitch Diameter (in)	4.775
Outside Diameter (in)	4.721
Flange Diameter (in)	5.005
Face Width (in)	2.344
Overall Length (in)	3.406
Hub Diameter (in)	3.625
Min. Bore (in)	1
Pulley Belt Width (in)	2.094
Unit System	Inch
P.D. (mm)	121.00
O.D. (mm)	119.90
MOQ	1
Weight (lb)	12.47
Part Number Cross Reference	30H200, 30HB200, 30H200 X 1 MPB, 30H200MPB, P30H200, P30H200-PB, 30H200-6FS10, 114458, 30H200-6FS10
