30HP100, Timing Pulley

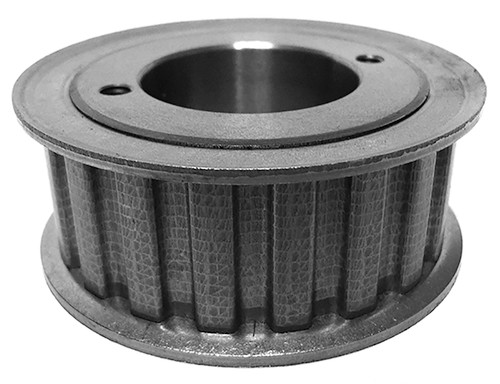

30HP100 - Cast Iron Imperial Pitch Pulleys

30HP100

30HP100 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

30HP100, Timing Pulley, Cast Iron

Learn more about 30HP100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30HP100
Teeth 30
Tooth Style H
For Belt Width (in) 1.0000
Type 6
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for P1 Bushing
Pitch Diameter (in) 4.775
Outside Diameter (in) 4.721
Flange Diameter (in) 5.000
Face Width (in) 1.250
Overall Length (in) 2.125
Min. Bore (in) 0.5
Unit System Inch
Bushing P1
P.D. (mm) 121.00
O.D. (mm) 119.90
MOQ 1
Weight (lb) 4.84
Part Number Cross Reference 30HP100, 30HP100, 30HP100
