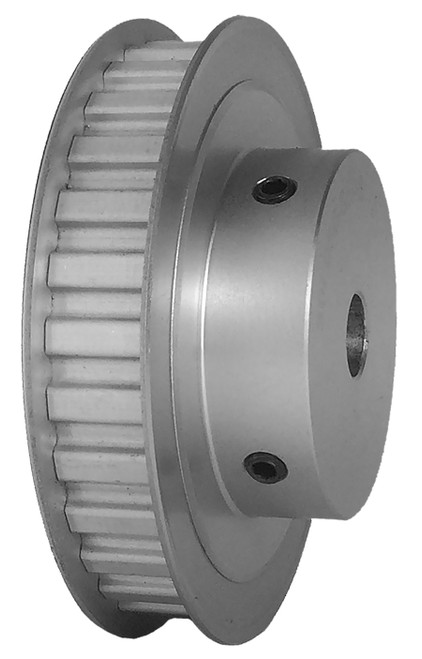

30L050-6FA6, Timing Pulley

30L050-6FA6 - Aluminum Imperial Pitch Pulleys

30L050-6FA6

Click to Enlarge

30L050-6FA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 30L050-6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30L050-6FA6
Teeth 30
Tooth Style L
For Belt Width (in) 0.5000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/2 Inch Finished Bore
Pitch Diameter (in) 3.581
Outside Diameter (in) 3.551
Flange Diameter (in) 3.800
Face Width (in) 0.750
Overall Length (in) 1.375
Hub Diameter (in) 2.250
Min. Bore (in) 0.500
Unit System Inch
P.D. (mm) 91.00
O.D. (mm) 90.20
MOQ 1
Weight (lb) 0.99
Part Number Cross Reference A 6A4-30DF05016, A6A4-30DF05016, 30L050MPB, M30L050, 30L050-6FA6
Set Screw Quantity 2
