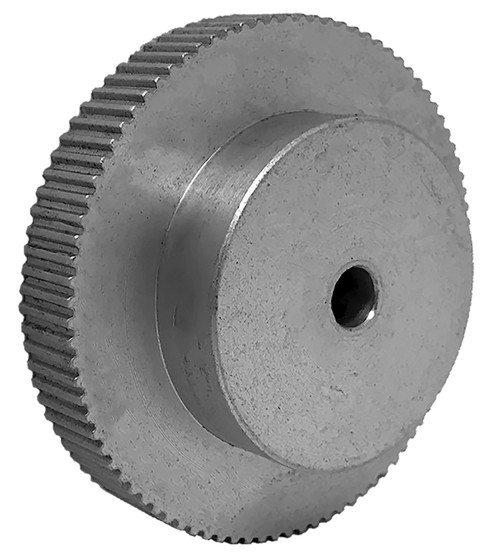

30LT187-6A3, Timing Pulley

30LT187-6A3 - Aluminum Imperial Pitch Pulleys

30LT187-6A3

Click to Enlarge

30LT187-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 30LT187-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30LT187-6A3
Teeth 30
Tooth Style LT
For Belt Width (in) 0.1875
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 0.779
Outside Diameter (in) 0.759
Face Width (in) 0.750
Overall Length (in) 0.656
Hub Diameter (in) 0.656
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 20.00
O.D. (mm) 19.30
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference 30LT187-6A3
Set Screw Quantity 2
