30MP025MIA6, Timing Pulley

30MP025MIA6 - E-Z Lock Hub Aluminum Metric Pulleys

Product Details for 30MP025MIA6

Comparable to: A 6D16M030DF6006, A6D16M030DF6006

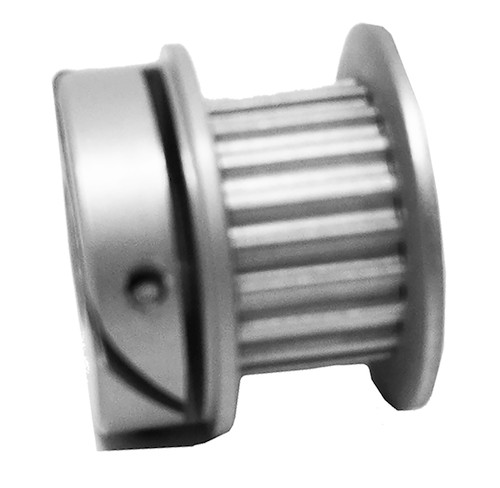

Click to Enlarge

30MP025MIA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 30MP025MIA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30MP025MIA6
Teeth 30
Tooth Style MXL
For Belt Width (in) 0.250
Type 6CI
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 6.00
Unit System Metric
P.D. (mm) 19.40
O.D. (mm) 18.90
Flange Diameter (mm) 24.00
Face Width (mm) 9.90
Overall Length (mm) 17.30
Hub Diameter (mm) 15.90
Number & Screw Size 1 x M3
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference A 6D16M030DF6006, A6D16M030DF6006
