Product Details for 30XL037-3FA3

Comparable to: 30XL037-3FA3, A 6A3-30H3708, A6A3-30H3708

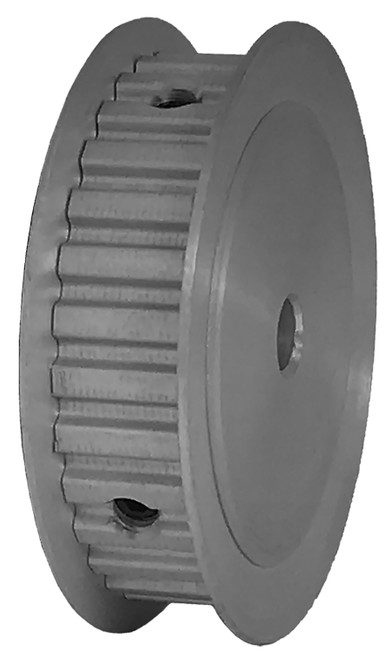

30XL037-3FA3, Timing Pulley, Powerhouse Timing, 1/4 Inch Bore, Aluminum

B&B Manufacturing carries 30XL037-3FA3 Aluminum Imperial Pitch Pulleys in small & large pitches to accomodate various industries. Contact us today for a free quote!

Specifications

Product Number 30XL037-3FA3
Teeth 30
Tooth Style XL
For Belt Width (in) 0.375
Type 3F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.910
Outside Diameter (in) 1.890
Flange Diameter (in) 2.125
Face Width (in) 0.563
Overall Length (in) 0.563
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.430
Unit System Inch
Max. Bore (in) 1.5775
Weight (lb) 0.20
Part Number Cross Reference 30XL037-3FA3, A 6A3-30H3708, A6A3-30H3708
