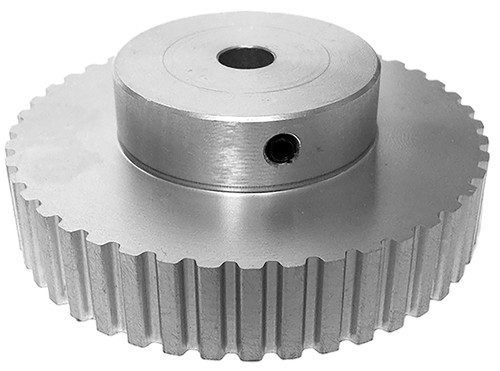

30XL037-6A4, Timing Pulley

30XL037-6A4 - Aluminum Imperial Pitch Pulleys

Product Details for 30XL037-6A4

Comparable to: 30XL037-6A4, A 6A3-30NF03710, A6A3-30NF03710

30XL037-6A4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 30XL037-6A4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30XL037-6A4
Teeth 30
Tooth Style XL
For Belt Width (in) 0.375
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 5/16 Inch Finished Bore
Pitch Diameter (in) 1.910
Outside Diameter (in) 1.890
Face Width (in) 0.563
Overall Length (in) 0.937
Hub Diameter (in) 1.375
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.3125
Pulley Belt Width (in) 0.430
Unit System Inch
Max. Bore (in) 1.125
Weight (lb) 0.25
Part Number Cross Reference 30XL037-6A4, A 6A3-30NF03710, A6A3-30NF03710
