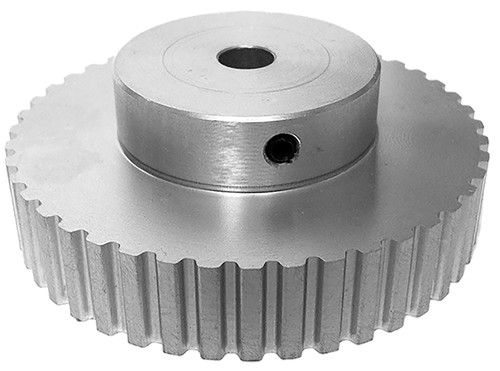

30XL037M6A10, Timing Pulley

30XL037M6A10 - Aluminum Metric Pulleys

Product Details for 30XL037M6A10

Comparable to: 30XL037M6A10, A 6A3M30NF09510, A6A3M30NF09510

30XL037M6A10, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 30XL037M6A10 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30XL037M6A10
Teeth 30
Tooth Style XL
For Belt Width (in) 0.375
Type 6
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 10.00
Set Screw 2 x M5 @ 90°
Pulley Belt Width (mm) 9.50
Unit System Inch
P.D. (mm) 48.50
O.D. (mm) 48.00
Face Width (mm) 23.80
Overall Length (mm) 9.50
Hub Diameter (mm) 35.00
Weight (lb) 0.20
Part Number Cross Reference 30XL037M6A10, A 6A3M30NF09510, A6A3M30NF09510
