30XXHR400, Timing Pulley

30XXHR400 - Cast Iron Imperial Pitch Pulleys

Product Details for 30XXHR400

Comparable to: 30XXHR400

Click to Enlarge

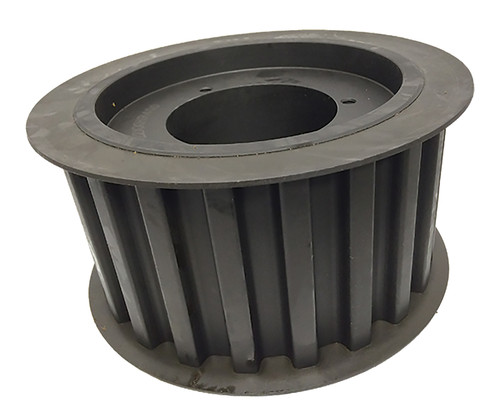

30XXHR400, Timing Pulley, Cast Iron

Learn more about 30XXHR400 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.


Product Number 30XXHR400
Teeth 30
Tooth Style XXH
For Belt Width (in) 4.000
Type 12
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore (in) R2
Pitch Diameter (in) 11.937
Outside Diameter (in) 11.817
Flange Diameter (in) 12.688
Face Width (in) 4.750
Overall Length (in) 5.156
Min. Bore (in) 1.375
Unit System Inch
Bushing R2
Max. Bore (in) 3.625
Weight (lb) 66.00
Part Number Cross Reference 30XXHR400
