31-14MX68-6FS10, Timing Pulley

31-14MX68-6FS10 - Cast Iron Powerhouse® MX Pulleys

Product Details for 31-14MX68-6FS10

Comparable to: 31-14MX68-6FS10, PB14MX-31S-68, 77166031, PB14MCS-31-68, 31G-14M-68-MPB, 208397

Click to Enlarge

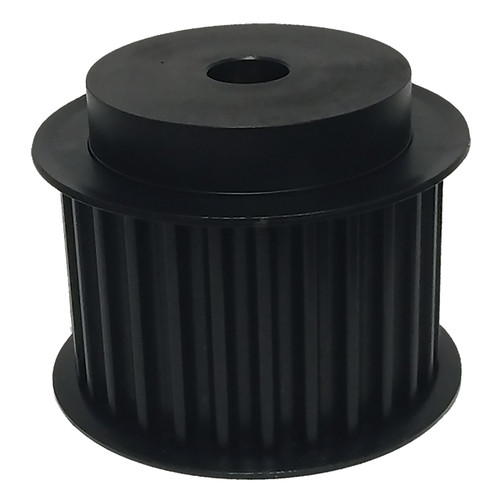

31-14MX68-6FS10, Timing Pulley, Steel, Black Oxide,

Learn more about 31-14MX68-6FS10 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 31-14MX68-6FS10
Teeth 31
Tooth Style GT2 14mm
For Belt Width (mm) 68.000
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1 Inch Minimum Plain Bore
Pitch Diameter (in) 5.439
Outside Diameter (in) 5.329
Flange Diameter (in) 6.124
Face Width (in) 3.328
Overall Length (in) 4.125
Hub Diameter (in) 4.570
Min. Bore (in) 1.000
Pulley Belt Width (in) 3.010
Unit System Inch
Max. Bore (in) 4.32
Weight (lb) 20.53
Part Number Cross Reference 31-14MX68-6FS10, PB14MX-31S-68, 77166031, PB14MCS-31-68, 31G-14M-68-MPB, 208397
