31-14P40-2012, Timing Pulley

31-14P40-2012 - Cast Iron Powerhouse® Pulleys

Product Details for 31-14P40-2012

Comparable to: P31-14MGT-40, 2763449, B3114M40TL

Click to Enlarge

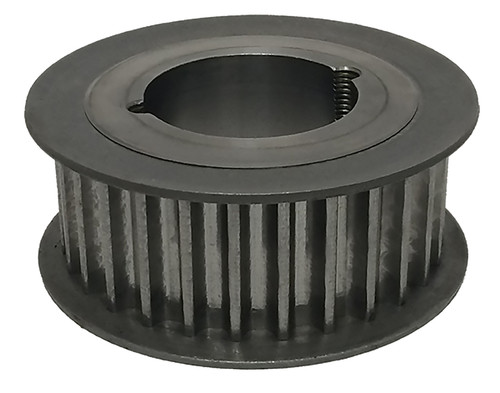

31-14P40-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 31-14P40-2012 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 31-14P40-2012
Teeth 31
Tooth Style 14P
For Belt Width (mm) 40
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2012
Pitch Diameter (in) 5.439
Outside Diameter (in) 5.329
Flange Diameter (in) 6.124
Face Width (in) 2.130
Overall Length (in) 2.130
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.810
Unit System Inch
Bushing 2012
MOQ 1
Weight (lb) 7.50
Part Number Cross Reference P31-14MGT-40, 2763449, B3114M40TL
