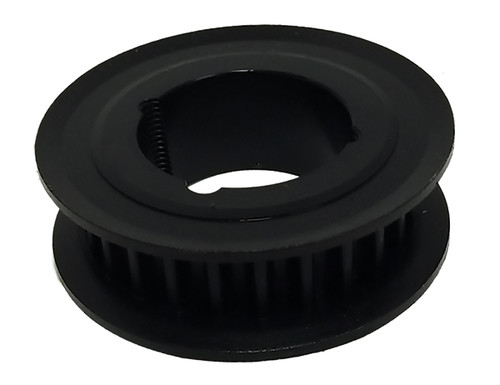

31-8MX12-1210, Timing Pulley

31-8MX12-1210 - Cast Iron Powerhouse® MX Pulleys

31-8MX12-1210

Click to Enlarge

31-8MX12-1210, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 31-8MX12-1210 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 31-8MX12-1210
Teeth 31
Tooth Style 8MX
For Belt Width (mm) 12.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1210 Bushing
Pitch Diameter (in) 3.108
Outside Diameter (in) 3.045
Flange Diameter (in) 3.543
Face Width (in) 1.000
Overall Length (in) 1.000
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.760
Unit System Inch
Bushing 1210
P.D. (mm) 79.00
O.D. (mm) 77.30
MOQ 1
Weight (lb) 1.24
Part Number Cross Reference 8MX-31S-12, B8MCS-31-12, 31G-8M-12-1210, 20839710, 8MX-31S-12-1210 HT500 SPKT, 8MPC31S12, 31-8MX12-1210, 481882, 31-8MX12-1210

Comparable to: 8MX-31S-12, B8MCS-31-12, 31G-8M-12-1210, 20839710, 8MX-31S-12-1210 HT500 SPKT, 8MPC31S12, 31-8MX12-1210, 481882, 31-8MX12-1210

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Keyway Standards and Tolerances
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
