31-8P12-1210, Timing Pulley

31-8P12-1210 - Cast Iron Powerhouse® Pulleys

Product Details for 31-8P12-1210

Comparable to: P31-8MGT-12, 77081231

Click to Enlarge

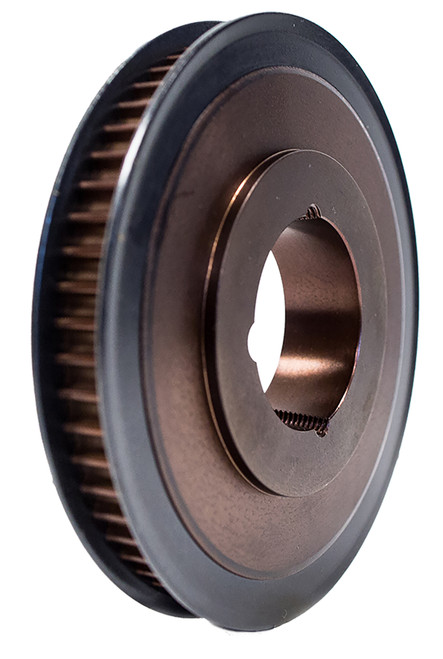

31-8P12-1210, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 31-8P12-1210 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 31-8P12-1210
Teeth 31
Tooth Style 8P
For Belt Width (mm) 12
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1210
Pitch Diameter (in) 3.108
Outside Diameter (in) 3.054
Flange Diameter (in) 3.420
Face Width (in) 1.000
Overall Length (in) 1.000
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.760
Unit System Inch
Bushing 1210
MOQ 1
Weight (lb) 1.18
Part Number Cross Reference P31-8MGT-12, 77081231
