31-8P30-1210, Timing Pulley

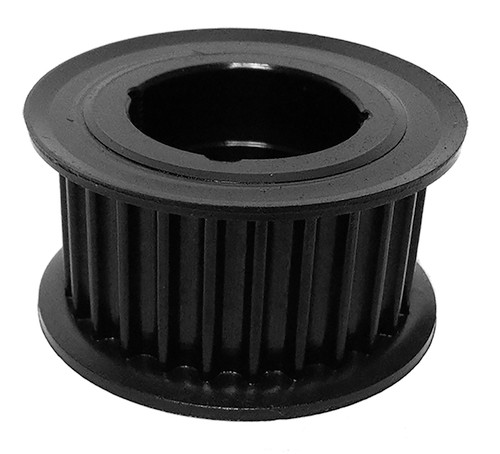

31-8P30-1210 - Cast Iron Powerhouse® Pulleys

31-8P30-1210

31-8P30-1210 - Cast Iron Powerhouse® Pulleys Line Drawing

Click to Enlarge

31-8P30-1210, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 31-8P30-1210 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 31-8P30-1210
Teeth 31
Tooth Style 8P
For Belt Width (mm) 30.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1210 Bushing
Pitch Diameter (in) 3.108
Outside Diameter (in) 3.054
Flange Diameter (in) 3.420
Face Width (in) 1.500
Overall Length (in) 1.500
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.260
Unit System Inch
Bushing 1210
P.D. (mm) 79.00
O.D. (mm) 77.60
MOQ 1
Weight (lb) 1.44
Part Number Cross Reference P31-8MGT-30, B318M30TL, P31-8M30-1210, 31-8P30-1210, 31-8P30-1210
