32-14MX90-6FS16, Timing Pulley

32-14MX90-6FS16 - Steel Powerhouse® MX Pulleys

Product Details for 32-14MX90-6FS16

Comparable to: PB14MX-32S-90, 77169032, 2767234, PB14MCS-32-90, 32G-14M-90-MPB, 20839795, 14MPC32S90MPB, GTR-32G-14M-90

Click to Enlarge

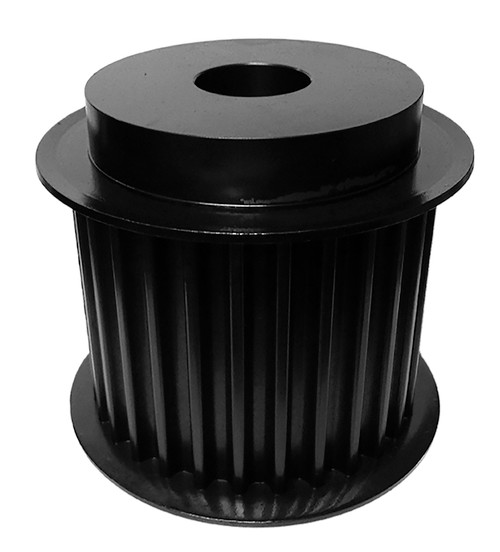

32-14MX90-6FS16, Timing Pulley, Steel, Black Oxide,

Learn more about 32-14MX90-6FS16 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32-14MX90-6FS16
Teeth 32
Tooth Style GT2 14mm
For Belt Width (mm) 90
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1-1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 5.614
Outside Diameter (in) 5.504
Flange Diameter (in) 6.124
Face Width (in) 4.203
Overall Length (in) 5.000
Hub Diameter (in) 4.570
Min. Bore (in) 1.500
Pulley Belt Width (in) 3.880
Unit System Inch
Max. Bore (in) 4.32
MOQ 1
Weight (lb) 25.01
Part Number Cross Reference PB14MX-32S-90, 77169032, 2767234, PB14MCS-32-90, 32G-14M-90-MPB, 20839795, 14MPC32S90MPB, GTR-32G-14M-90
