32-2P06-6FA3, Timing Pulley

32-2P06-6FA3 - Aluminum Powerhouse® Pulleys

32-2P06-6FA3

Click to Enlarge

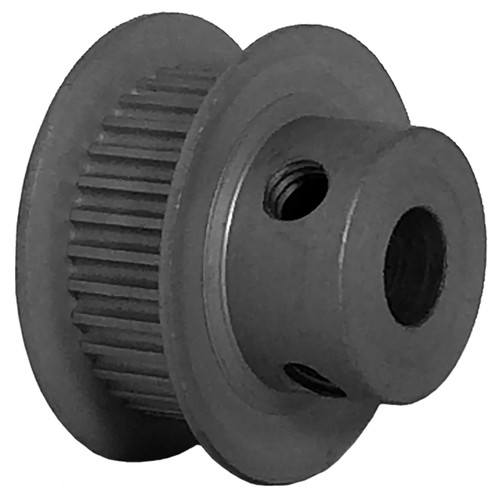

32-2P06-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 32-2P06-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32-2P06-6FA3
Teeth 32
Tooth Style 2P
For Belt Width (mm) 6.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 0.802
Outside Diameter (in) 0.782
Flange Diameter (in) 1.000
Face Width (in) 0.389
Overall Length (in) 0.687
Hub Diameter (in) 0.598
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.290
Unit System Inch
P.D. (mm) 20.00
O.D. (mm) 19.90
MOQ 1
Weight (lb) 0.03
Part Number Cross Reference A 6A51-032DF0608, A6A51-032DF0608, 2MR-32S-06, 2MR-32S-06, TP2A3W6-32, 32-2GT06-1A X 1/4, 32-2P06-6FA3, 32-2P06-6FA3
Set Screw Quantity 2

Comparable to: A 6A51-032DF0608, A6A51-032DF0608, 2MR-32S-06, 2MR-32S-06, TP2A3W6-32, 32-2GT06-1A X 1/4, 32-2P06-6FA3, 32-2P06-6FA3
