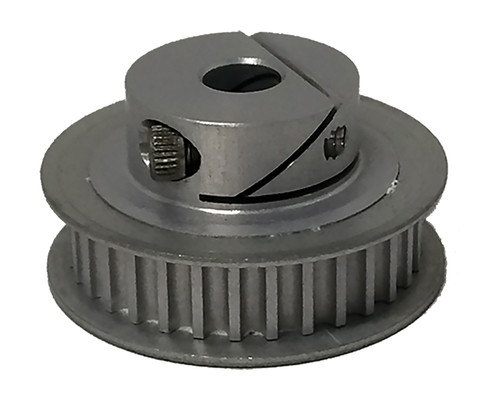

32-3M06-IA3, Timing Pulley

32-3M06-IA3 - E-Z Lock Hub Aluminum Powerhouse®HTD® Pulleys

32-3M06-IA3

32-3M06-IA3 - E-Z Lock Hub Aluminum Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

32-3M06-IA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 32-3M06-IA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32-3M06-IA3
Teeth 32
Tooth Style HTD3mm
For Belt Width (mm) 6.00
Type 6FI
Material Aluminum
Finish Clear Anodized
Bore Type EZ Lock
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.203
Outside Diameter (in) 1.173
Flange Diameter (in) 1.323
Face Width (in) 0.386
Overall Length (in) 0.688
Hub Diameter (in) 0.750
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 31.00
O.D. (mm) 29.80
Number & Screw Size 1 x 2-56
MOQ 1
Weight (lb) 0.05
Part Number Cross Reference 32-3M06-IA3, 32-3M06-IA3
Set Screw Quantity 1
