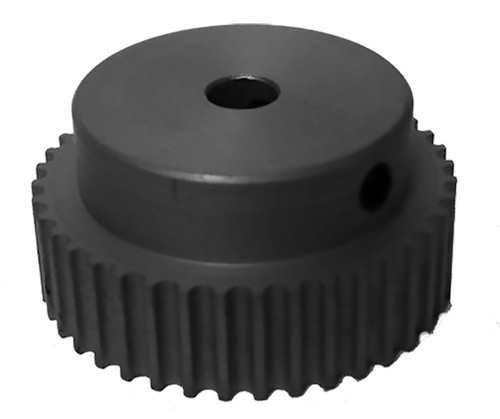

32-3M06M6A6, Timing Pulley

32-3M06M6A6 - Aluminum Powerhouse®HTD® Pulleys

32-3M06M6A6

Click to Enlarge

32-3M06M6A6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 32-3M06M6A6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32-3M06M6A6
Teeth 32
Tooth Style HTD3mm
For Belt Width (mm) 6.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 1.203
Outside Diameter (in) 1.173
Pulley Belt Width (mm) 6.00
Unit System Metric
P.D. (mm) 31.00
O.D. (mm) 29.80
Face Width (mm) 9.80
Overall Length (mm) 17.50
Hub Diameter (mm) 21.60
MOQ 1
Weight (lb) 0.05
Part Number Cross Reference A 6A23M032NF0606, A6A23M032NF0606, 32-3M06M6A6, 32-3M06M6A6
Set Screw Quantity 2
