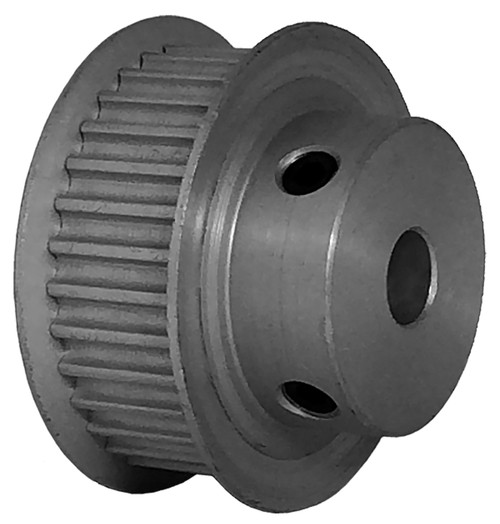

32-3P09-6FA3, Timing Pulley

32-3P09-6FA3 - Aluminum Powerhouse® Pulleys

Product Details for 32-3P09-6FA3

Comparable to: 32-3P09-6FA3, A 6A53-032DF0908, A6A53-032DF0908, 3MR-32S-09, TP3A3W9-

32-3P09-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 32-3P09-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32-3P09-6FA3
Teeth 32
Tooth Style GT 3mm
For Belt Width (mm) 9.000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.203
Outside Diameter (in) 1.173
Flange Diameter (in) 1.323
Face Width (in) 0.506
Overall Length (in) 0.812
Hub Diameter (in) 0.851
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.400
Unit System Inch
Max. Bore (in) 0.601
Weight (lb) 0.07
Part Number Cross Reference 32-3P09-6FA3, A 6A53-032DF0908, A6A53-032DF0908, 3MR-32S-09, TP3A3W9-
