32-5M09M6A8, Timing Pulley

32-5M09M6A8 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 32-5M09M6A8

Comparable to: A 6A25M034NF0908, A6A25M032NF0908

Click to Enlarge

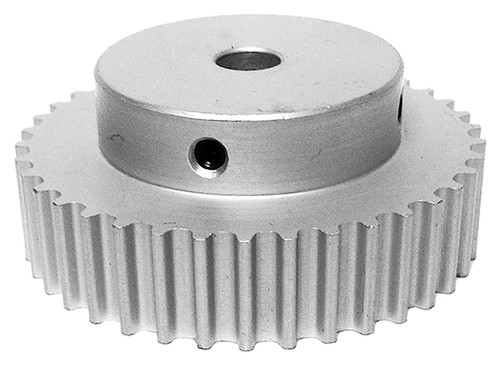

32-5M09M6A8, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 32-5M09M6A8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32-5M09M6A8
Teeth 32
Tooth Style HTD 5mm
For Belt Width (mm) 9
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (mm) 8.00
Pulley Belt Width (mm) 9.00
Unit System Metric
P.D. (mm) 50.90
O.D. (mm) 49.80
Face Width (mm) 13.90
Overall Length (mm) 21.80
Hub Diameter (mm) 31.80
MOQ 1
Weight (lb) 0.18
Part Number Cross Reference A 6A25M034NF0908, A6A25M032NF0908
Set Screw Quantity 2
