32-5M15-6A3, Timing Pulley

32-5M15-6A3 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 32-5M15-6A3

Comparable to: A 6A25-032NF1508, A6A25-032NF1508, PT032G08L15N

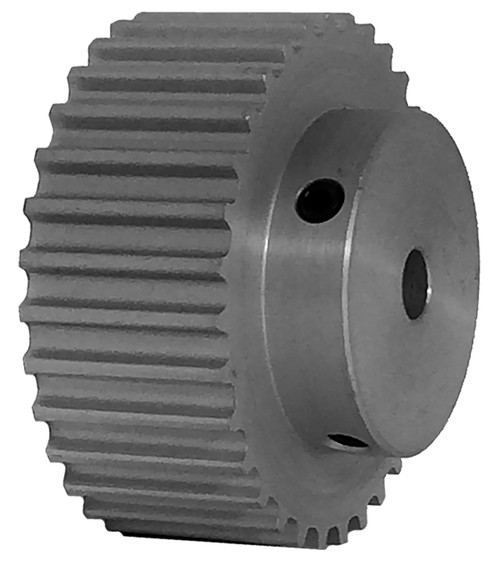

Click to Enlarge

32-5M15-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 32-5M15-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32-5M15-6A3
Teeth 32
Tooth Style HTD 5mm
For Belt Width (mm) 15
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 2.005
Outside Diameter (in) 1.960
Face Width (in) 0.781
Overall Length (in) 1.093
Hub Diameter (in) 1.250
Min. Bore (in) 0.250
Unit System Inch
MOQ 1
Weight (lb) 0.26
Part Number Cross Reference A 6A25-032NF1508, A6A25-032NF1508, PT032G08L15N
Set Screw Quantity 2
