32-8P20-1210, Timing Pulley

32-8P20-1210 - Cast Iron Powerhouse® Pulleys

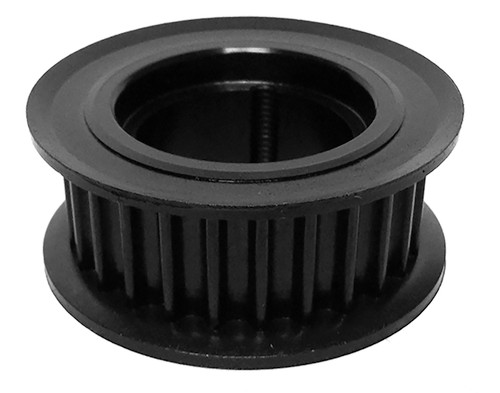

32-8P20-1210

Click to Enlarge

32-8P20-1210, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 32-8P20-1210 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32-8P20-1210
Teeth 32
Tooth Style 8P
For Belt Width (mm) 20
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1210
Pitch Diameter (in) 3.208
Outside Diameter (in) 3.154
Flange Diameter (in) 3.543
Face Width (in) 1.130
Overall Length (in) 1.130
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.890
Unit System Inch
Bushing 1210
P.D. (mm) 82.00
O.D. (mm) 80.10
MOQ 1
Weight (lb) 1.43
Part Number Cross Reference 32-8P20-1210
