32HQ300, Timing Pulley

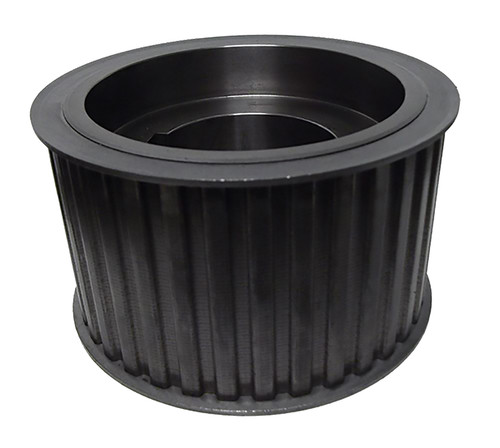

32HQ300 - Cast Iron Imperial Pitch Pulleys

32HQ300

32HQ300 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

32HQ300, Timing Pulley, Cast Iron

Learn more about 32HQ300 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32HQ300
Teeth 32
Tooth Style H
For Belt Width (in) 3.0000
Type 11
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for Q1 Bushing
Pitch Diameter (in) 5.093
Outside Diameter (in) 5.039
Flange Diameter (in) 5.313
Face Width (in) 3.313
Overall Length (in) 3.594
Min. Bore (in) 0.75
Unit System Inch
Bushing Q1
P.D. (mm) 129.00
O.D. (mm) 128.00
MOQ 1
Weight (lb) 8.08
Part Number Cross Reference 32HQ300, 32HQ300, 32HQ300
