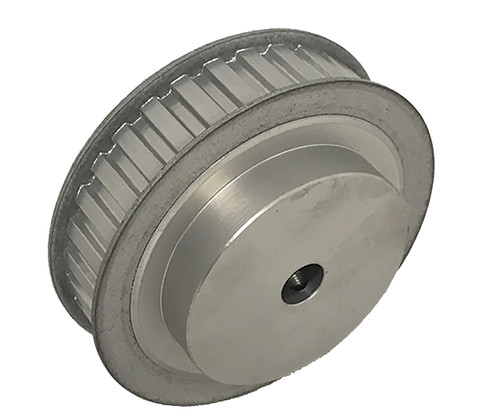

32L075-6FA6, Timing Pulley

32L075-6FA6 - Aluminum Imperial Pitch Pulleys

32L075-6FA6

Click to Enlarge

32L075-6FA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 32L075-6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32L075-6FA6
Teeth 32
Tooth Style L
For Belt Width (in) 0.7500
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/2 Inch Finished Bore
Pitch Diameter (in) 3.820
Outside Diameter (in) 3.790
Flange Diameter (in) 4.044
Face Width (in) 1.000
Overall Length (in) 1.500
Hub Diameter (in) 2.625
Min. Bore (in) 0.500
Unit System Inch
P.D. (mm) 97.00
O.D. (mm) 96.30
MOQ 1
Weight (lb) 1.40
Part Number Cross Reference M32L075, 32L075-6FA6
Set Screw Quantity 2
