32L075-6FS7, Timing Pulley

32L075-6FS7 - Steel Imperial Pitch Pulleys

32L075-6FS7

Click to Enlarge

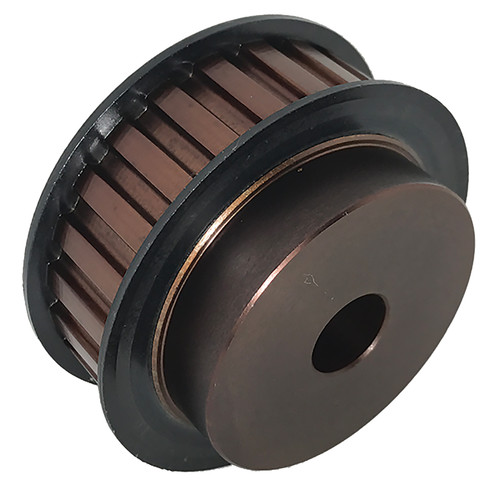

32L075-6FS7, Timing Pulley, Steel, Black Oxide,

Learn more about 32L075-6FS7 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32L075-6FS7
Teeth 32
Tooth Style L
For Belt Width (in) 0.7500
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 0.625
Bore Description 5/8 Inch Minimum Plain Bore
Pitch Diameter (in) 3.820
Outside Diameter (in) 3.790
Flange Diameter (in) 4.044
Face Width (in) 1.000
Overall Length (in) 1.500
Hub Diameter (in) 2.625
Min. Bore (in) 0.625
Pulley Belt Width (in) 0.820
Unit System Inch
P.D. (mm) 97.00
O.D. (mm) 96.30
MOQ 1
Weight (lb) 3.50
Part Number Cross Reference 32L075, 32LB075, 32L075-6FS7 SPROCKET QTE, 21060046, 32L075 X 5/8 MPB, 32L075MPB, P32L075, P32L075-PB, 32L075-6FS7, 114322, 32L075-6FS7

Comparable to: 32L075, 32LB075, 32L075-6FS7 SPROCKET QTE, 21060046, 32L075 X 5/8 MPB, 32L075MPB, P32L075, P32L075-PB, 32L075-6FS7, 114322, 32L075-6FS7
