32LH100, Timing Pulley

32LH100 - Cast Iron Imperial Pitch Pulleys

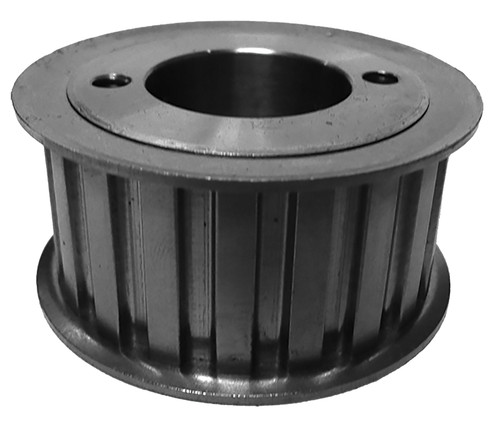

32LH100

32LH100 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

32LH100, Timing Pulley, Cast Iron

Learn more about 32LH100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32LH100
Teeth 32
Tooth Style L
For Belt Width (in) 1.0000
Type 16
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for H Bushing
Pitch Diameter (in) 3.820
Outside Diameter (in) 3.790
Flange Diameter (in) 4.063
Face Width (in) 1.250
Overall Length (in) 1.438
Min. Bore (in) 0.375
Unit System Inch
Bushing H
P.D. (mm) 97.00
O.D. (mm) 96.30
MOQ 1
Weight (lb) 2.52
Part Number Cross Reference 32LH100, 32LH100, 32LH100
