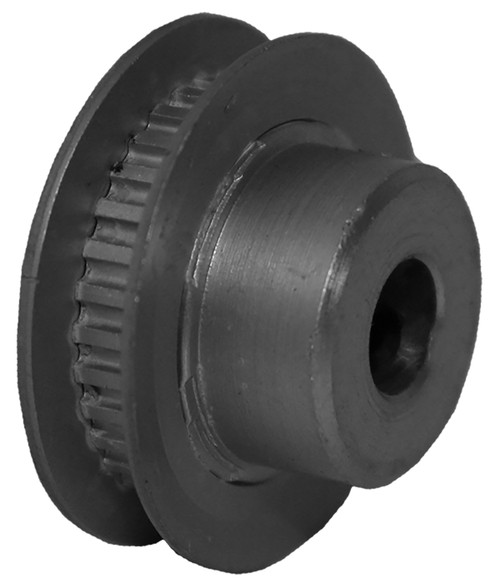

32MP012-6FA3, Timing Pulley

32MP012-6FA3, A6N16-032DF1208, A 6N16-032DF1208, PB32MXL012, 78260286, 32MP-012 1/4 6F, PT032A08L02T, TP7A4W2-32

Product Details for 32MP012-6FA3

Comparable to: 32MP012-6FA3, A 6N16-032DF1208, A6N16-032DF1208, PB32MXL012, 78260286, 32MP-012 1/4 6F, PT032A08L02T, TP7A4W2-

32MP012-6FA3, Timing Pulley, Powerhouse Timing, 1/4 Inch Bore, Aluminum

Learn more about 32MP012-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32MP012-6FA3
Teeth 32
Tooth Style MXL
For Belt Width (in) 0.125
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 0.815
Outside Diameter (in) 0.795
Flange Diameter (in) 1.000
Face Width (in) 0.260
Overall Length (in) 0.516
Hub Diameter (in) 0.598
Set Screw 2 x 6-40 @ 90°
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.160
Unit System Inch
Max. Bore (in) 0.348
Weight (lb) 0.02
Part Number Cross Reference 32MP012-6FA3, A 6N16-032DF1208, A6N16-032DF1208, PB32MXL012, 78260286, 32MP-012 1/4 6F, PT032A08L02T, TP7A4W2-
