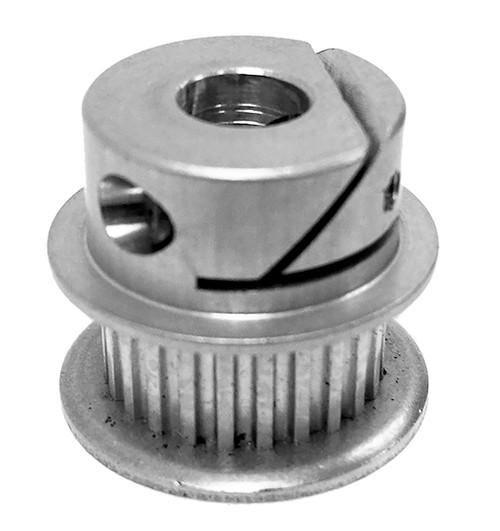

32MP025-IA3, Timing Pulley, E-Z Lock Hub

32MP025-IA3, A 6D16-032DF2508

Product Details for 32MP025-IA3

Comparable to: 32MP025-IA3, A 6D16-032DF2508, A6D16-032DF2508

32MP025-IA3, Timing Pulley, Powerhouse Timing, 1/4 Inch Bore, Aluminum, E-Z Lock Hub

Learn more about 32MP025-IA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32MP025-IA3
Teeth 32
Tooth Style MXL
For Belt Width (in) 0.250
Type 6CI
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 0.815
Outside Diameter (in) 0.795
Flange Diameter (in) 1.000
Face Width (in) 0.389
Overall Length (in) 0.688
Hub Diameter (in) 0.625
Min. Bore (in) 0.250
Unit System Inch
Max. Bore (in) 0.25
Number & Screw Size 1 x 2-56
Weight (lb) 0.03
Part Number Cross Reference 32MP025-IA3, A 6D16-032DF2508, A6D16-032DF2508
