32XHR200, Timing Pulley

32XHR200 - Cast Iron Imperial Pitch Pulleys

32XHR200

Click to Enlarge

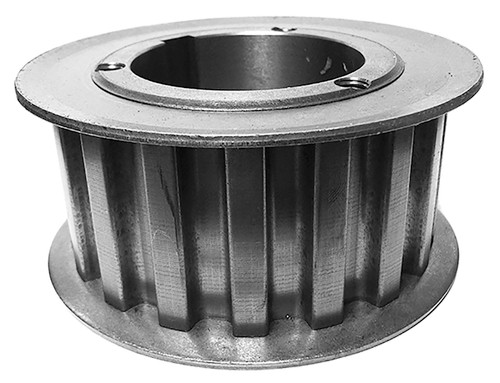

32XHR200, Timing Pulley, Cast Iron

Learn more about 32XHR200 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32XHR200
Teeth 32
Tooth Style XH
For Belt Width (in) 2.0000
Type 11
Material Steel
Flange Material Steel
Bore Type Split Taper
Bore (in) R1
Pitch Diameter (in) 8.913
Outside Diameter (in) 8.803
Flange Diameter (in) 9.438
Face Width (in) 2.563
Overall Length (in) 3.156
Min. Bore (in) 1.125
Unit System Inch
Bushing R1
P.D. (mm) 226.00
O.D. (mm) 223.60
MOQ 1
Weight (lb) 26.72
Part Number Cross Reference 32XHR200, 32XHR200-R1, 21070646, 32XHR200
