32XL037-3FA3 Imperial Pitch Pulleys

32XL037-3FA3

Product Details for 32XL037-3FA3

Comparable to: 32XL037-3FA3, A 6A3-32H3708, A6A3-32H3708

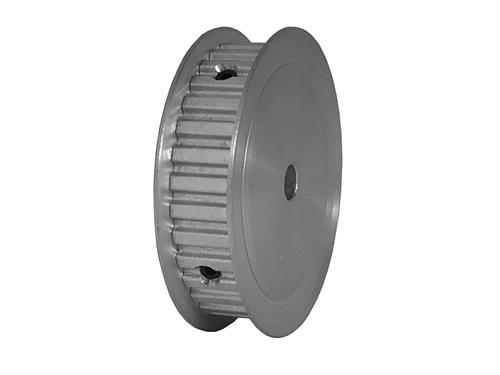

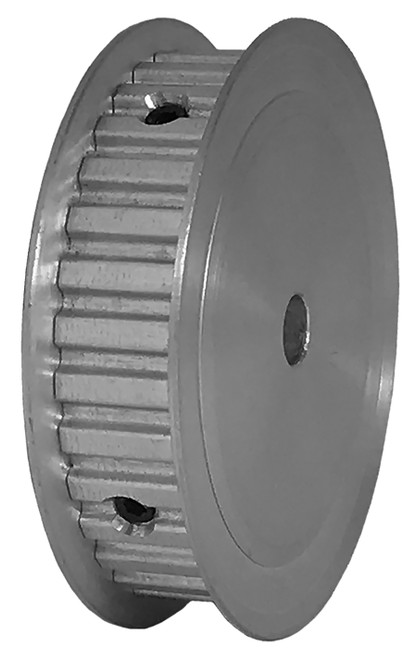

32XL037-3FA3, Timing Pulley, Powerhouse Timing, 1/4 Inch Bore, Aluminum

Specifications

Product Number 32XL037-3FA3
Teeth 32
Tooth Style XL
For Belt Width (in) 0.375
Type 3F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 2.037
Outside Diameter (in) 2.017
Flange Diameter (in) 2.250
Face Width (in) 0.563
Overall Length (in) 0.563
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.430
Unit System Inch
Max. Bore (in) 1.7045
Weight (lb) 0.25
Part Number Cross Reference 32XL037-3FA3, A 6A3-32H3708, A6A3-32H3708
