32XL037-3FA4, Timing Pulley

32XL037-3FA4 - Aluminum Imperial Pitch Pulleys

32XL037-3FA4

Click to Enlarge

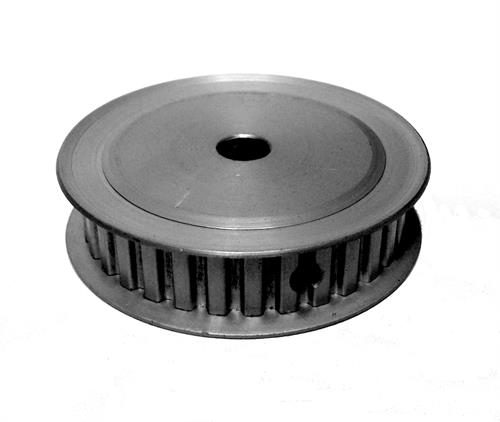

32XL037-3FA4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 32XL037-3FA4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32XL037-3FA4
Teeth 32
Tooth Style XL
For Belt Width (in) 0.3750
Type 3F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.313
Bore Description 5/16 Inch Finished Bore
Pitch Diameter (in) 2.037
Outside Diameter (in) 2.017
Flange Diameter (in) 2.250
Face Width (in) 0.563
Overall Length (in) 0.563
Min. Bore (in) 0.3125
Pulley Belt Width (in) 0.430
Unit System Inch
P.D. (mm) 52.00
O.D. (mm) 51.20
MOQ 1
Weight (lb) 0.20
Part Number Cross Reference A 6A3-32H3710, A6A3-32H3710, 32XL037 5/16 3FA, 32XL037-5A X 5/16, 32XL037-3FA4, 32XL037-3FA4
Set Screw Quantity 2
