32XL037-3FA5 Imperial Pitch Pulleys

32XL037-3FA5, A 6A3-32H3712

Product Details for 32XL037-3FA5

Comparable to: 32XL037-3FA5, A 6A3-32H3712,

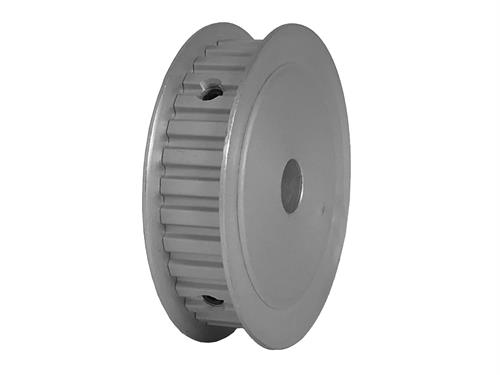

32XL037-3FA5, Timing Pulley, Powerhouse Timing, 3/8 Inch Bore, Aluminum

Specifications

Product Number 32XL037-3FA5
Teeth 32
Tooth Style XL
For Belt Width (in) 0.375
Type 3F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.375
Pitch Diameter (in) 2.037
Outside Diameter (in) 2.017
Flange Diameter (in) 2.250
Face Width (in) 0.563
Overall Length (in) 0.563
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.375
Pulley Belt Width (in) 0.430
Unit System Inch
Weight (lb) 0.25
List Price (1-9 Qty.) (USD) 14.77
Discount Price (10-24 Qty.) (USD) 13.3
Discount Price (25-49 Qty.) (USD) 11.08
Discount Price (50-99 Qty.) (USD) 9.6
Discount Price (100-249 Qty.) (USD) 7.76
Part Number Cross Reference 32XL037-3FA5, A 6A3-32H3712,

Documentation

Download Catalog 2015_BBMAN_CATALOG_24.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 32XL037-3FA5_REACH_cert
RoHS Certification 32XL037-3FA5_RoHS_cert
