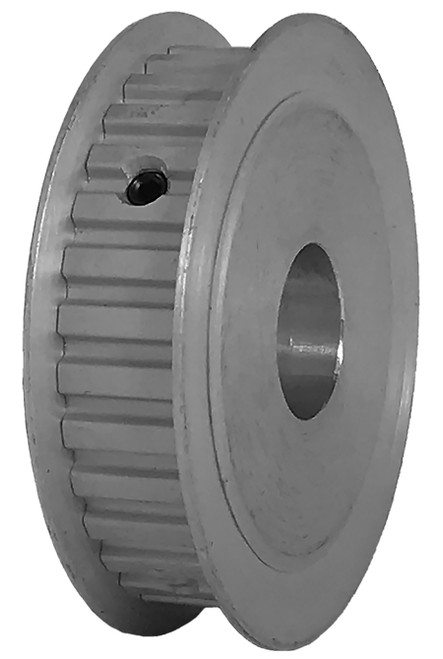

32XL037-3FA7, Timing Pulley

32XL037-3FA7

Click to Enlarge

32XL037-3FA7, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 32XL037-3FA7 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	32XL037-3FA7
Teeth	32
Tooth Style	XL
For Belt Width (in)	0.3750
Type	3F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.625
Bore Description	5/8 Inch Finished Bore
Pitch Diameter (in)	2.037
Outside Diameter (in)	2.017
Flange Diameter (in)	2.250
Face Width (in)	0.563
Overall Length (in)	0.563
Min. Bore (in)	0.625
Pulley Belt Width (in)	0.430
Unit System	Inch
P.D. (mm)	52.00
O.D. (mm)	51.20
MOQ	1
Weight (lb)	0.20
Part Number Cross Reference	32XL037-5A X 5/8, 32XL037-3FA7, 32XL037-3FA7
Set Screw Quantity	2
